NETIO PowerPDU 8QS




PowerPDU 8QS

NETIO PowerPDU 8QS is a PDU (Power Distribution Unit) with eight power outputs (8x IEC-320 C13) controlled and metered over a LAN. It fits into a 19” cabinet (1U). Each output can be controlled independently. PowerPDU 8QS supports two channels for electrical measurements: the PDU as a whole (all outputs combined), and the first output separately (Output1). A digital input (DI) can be used to control the outputs or read S0 pulses (electricity meter output).

The device’s WEB interface can be used to control the outputs, configure the Scheduler for each output, and so on. With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud service is provided for a fee, features SSL security and its servers are located in Europe.


Technical Specifications:

  • LAN (RJ45): Yes

  • WiFi: No

  • Online demo: Yes

  • Web: Built-in web server

  • FW upgrade: Yes (via WEB interface)

  • Download: FW Archive

  • Mobile app: NETIO Mobile2 (Android)

  • Cloud connection needed for installation: No

  • Control button: No

  • Service: NETIO Cloud (paid service)

  • Open API (M2M protocols)

    • Modbus/TCP

    • MQTT-flex

    • Telnet

    • http URL API

    • http JSON

    • http XML

    • SNMP v1/v3

    • http Push XML

    • http Push JSON

  • Lua support: No

  • Scheduler function: Yes

  • IP WatchDog function: No

  • Sending emails: No

  • Event log: Yes (web)

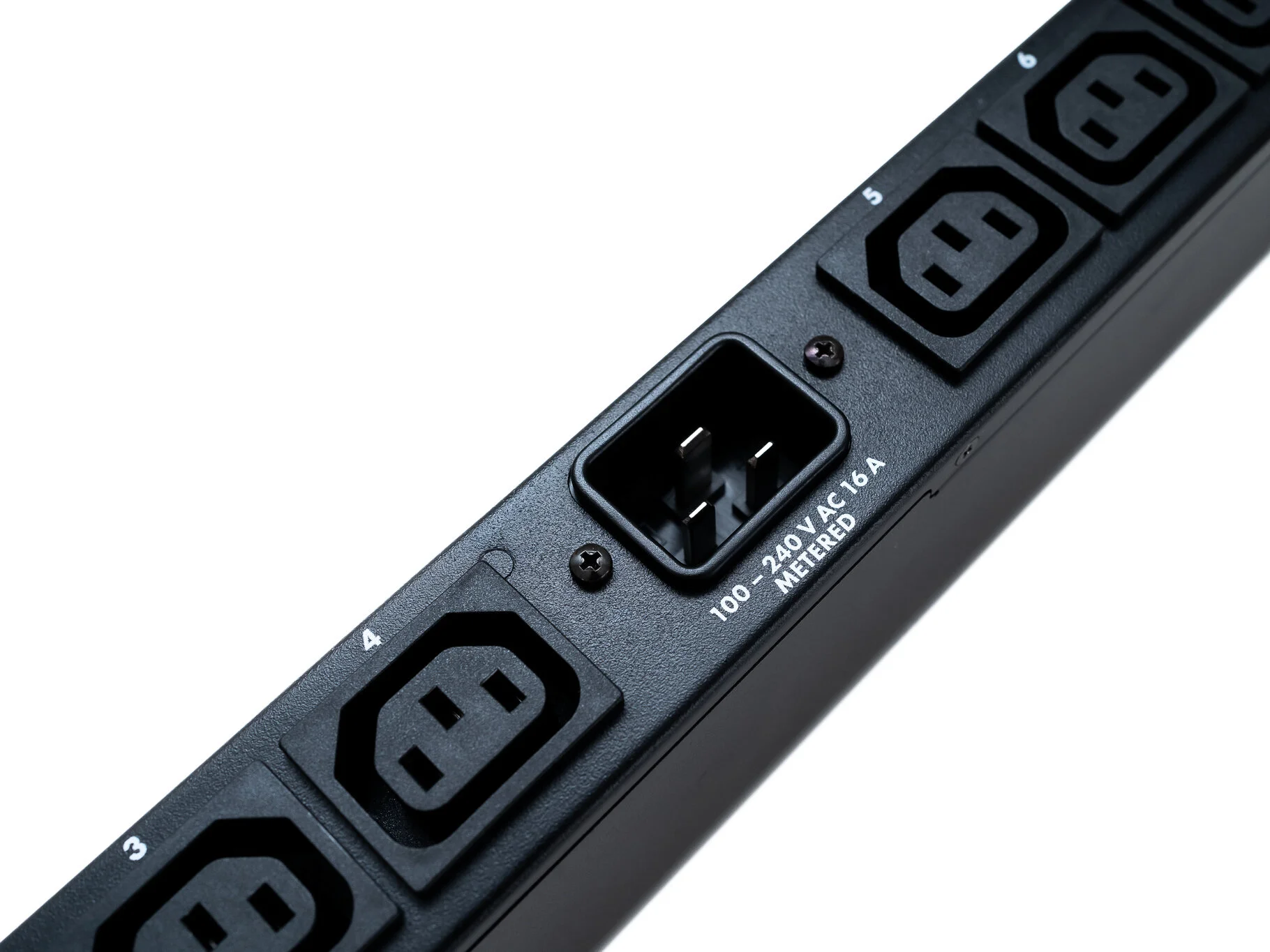

  • Power input: IEC-320 C20, 110/230V (Max 16A)

  • Power output: 8 x IEC-320 C13 (max 10A / Output)

  • Number of controlled outputs: 8

  • Electrical measurements: Yes

  • Number of channels for measurements: 2 (All outputs + Output 1)

  • Parameters measured for the whole device: Grid frequency [Hz], Voltage [V], Total current [A], Total power input V [W], Overall TruePF [-], Overall phase shift [°], Total Energy [Wh], Total Reverse Energy [Wh]

  • Parameters measured for output 1: ·         Current [A] / Power input [W] / TruePF [-] / Phase shift [°] / Energy [Wh] / Reverse energy [Wh]

  • Accuracy of electrical measurements: ·         better than 1% (in the entire temperature range)

  • Internal Consumption: 1-3 W

  • Digital Inputs (DI): 1x input (contact) + S0 counter (4 bytes)

  • Power for DI: 12V Power

SPD - Surge protection: Yes, type 3

  • Switching element: relay SPST-NO, ZCS

  • ZCS (Zero Current Switching): Yes

  • IOC (output state independent from FW upgrades): Yes

  • PowerUp state of outputs: On / Off / LAST state

  • PowerUp delay: Yes



  • Mechanical: 19” (1U) Rack mount

  • Protection: IP30

  • Sound output: No

  • Designed and manufactured: European Union (Czech Republic , Prague)
