NETIO PowerCable 2KZ




PowerCable 2KZ

NETIO PowerCable 2KZ is flat PDU (can be easily installed behind TV or to small areas). PDU provides LAN (RJ45 Ethernet) or WiFi connectivity. Both power outputs measures power consumption (A, kWh, TPF, W, V, Hz) and switching On/Off both power output individually (ZCS). Each output can be switched manually over the web, the NETIO Cloud service, or with a Mobile App (Locally or via NETIO Cloud). 2x DI (Digital Inputs) with 4-byte pulse counters can be used to read relay output state (dry contact) or S0 pulses from electricity, water or similar meters. PDU supports local Ping & Power WatchDog and week based Scheduler functions. PowerCable 2KZ is delivered without power cables, user have to install power cables to the terminal block inside black housing with using screw driver. Open API enables integration into third-party systems using a wide range of protocols (JSON, Modbus/TCP, SNMP, MQTT, Telnet, ..). With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud service, provided for a fee, uses SSL/TLS security and servers in Europe.

NETIO - PowerCable 2KZ - rear - no cables.png

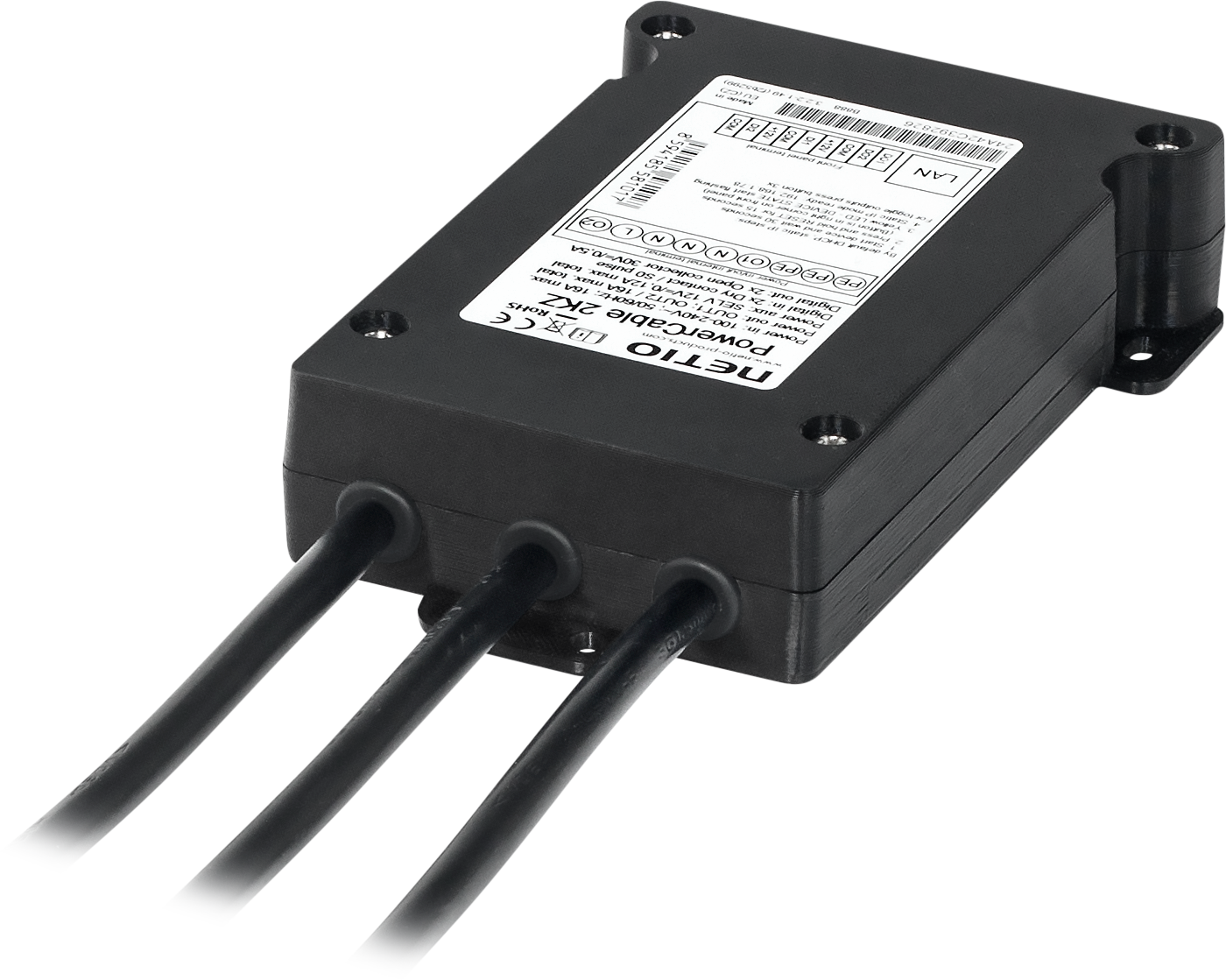

NETIO - PowerCable 2KZ - rear.png
PowerCable 2KF - main.png
PowerCable 2KZ - main_better_trans back.png
PowerCable 2KZ_cables-2.png
PowerCable 2KZ_cables-3.png
PowerCable 2KZ_opened-cables-label.png
PowerCable 2KZ_top-cables-2.png
PowerCable 2KZ_top-cables-3.png

Technical Specifications:

  • LAN (RJ45): Yes

  • WiFi: Yes

  • Web: Built-in web server

  • Online demo: Yes

  • FW upgrade: Yes - web

  • Mobile app: NETIO Mobile2 (LAN + Cloud)

  • Installation without a Cloud connection: Yes

  • Control button: Yes

  • Service: NETIO Cloud (for a fee)

  • M2M API protocols:

    • JSON over HTTP (default)

    • MQTT-flex (extended MQTT, SSL enabled)

    • HTTP Push JSON

    • HTTP Push XML

    • SNMP v1

    • SNMP v3

    • Modbus/TCP

    • XML over HTTP

    • URL API (http get) (writing only)

    • Telnet (Outputs only, backwards compatible with KSHELL)

  • Lua scripting support: No

  • Condition & Rules: Yes

  • Scheduler function (weekly calendar): Yes

  • IP (ping) WatchDog function: Yes (Condition & Rules)

  • Power WatchDog function: Yes

  • Sending e-mails: No

  • Power input: Terminal block (2.5mm2), 100-240VAC (50/60Hz) / max 16A

  • Power output: Terminal block (2.5mm2)

  • Metered Outputs: 2 channels

  • Digital Outputs: 2 in total

  • Power outputs: 2x Relay + ZCS (SPST-NO) – Max 16A

  • Electrical metering: Voltage, Frequency, Phase shift, TPF, Load, Consumption, Current, Reverse Energy.

  • DI (Digital Inputs): 2 (dry contact) + S0 counter (4 bytes)

  • Internal consumption: Max 2 W

  • SPD – surge protection: Yes, type 3

  • ZCS (Zero Current Switching): Yes

  • IOC (output state independent from FW updates): Yes

  • PowerUp state of outputs: On / Off / LAST state

  • Mechanical characteristics: 102 x 32 x 149 mm

  • Protection: IP20

  • Sound output: No

  • Temperature range: -20°C to +55°C

  • AV Drivers (most popular):

    • BrightSign

    • Control 4

    • Crestron

    • ELAN

    • Kramer

    • Loxone

    • Biamp / Neets

    • RTI

    • SAVANT

    • SKAARHOJ
