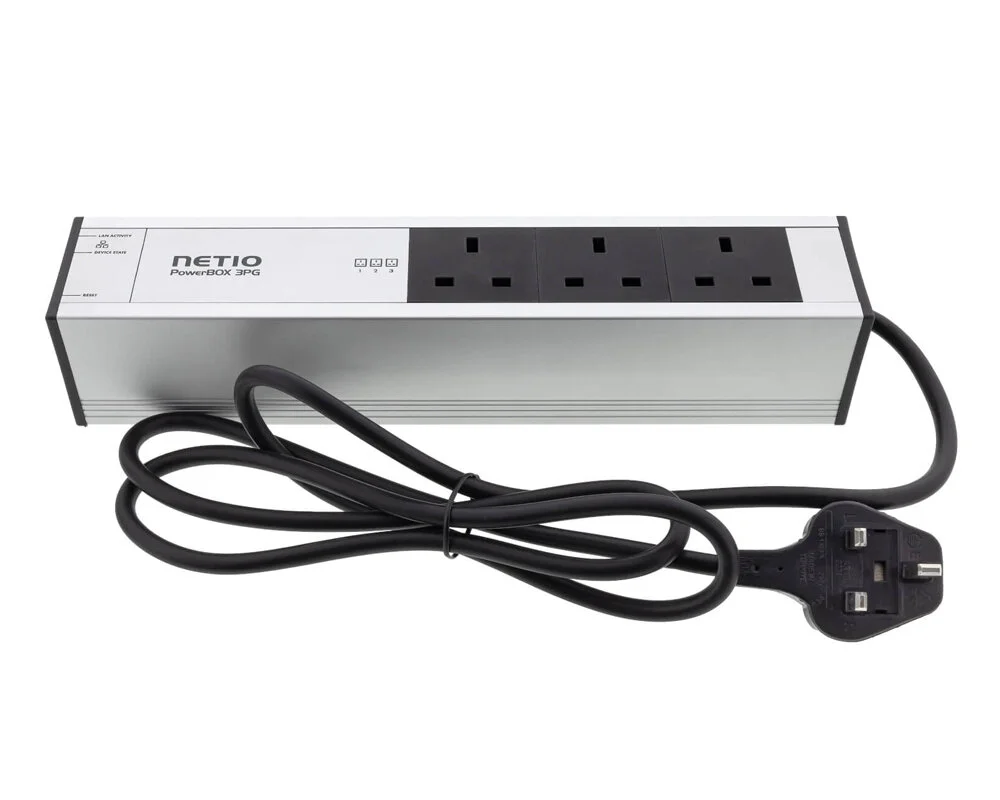

NETIO PowerBOX 3PG




PowerBOX 3PG

NETIO PowerBOX 3Px is a professional electrical socket device with 3 outputs and LAN connectivity. Each output socket can be separately switched on or off over the web interface. Integration into third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy thanks to the open API. With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud service, provided for a fee, uses SSL security and servers in Europe.

NETIO PowerBOX 3Px can be configured with a web browser (allows output control, connection to NETIO Cloud, Open API communication settings, etc.).

PowerBOX 3Px is a smart IoT LAN power socket in the form of an extension cable. A RJ45 Ethernet cable is used to connect to the LAN.



Technical Specifications:

  • LAN (RJ45): Yes

  • WiFi: No

  • Online demo: Yes

  • Web: Built-in web server

  • FW upgrade: Yes (via the device’s WEB interface)
    Download: FW Archive

  • Mobile app: NETIO Mobile2 (Android)

  • Cloud connection needed for installation: No

  • Control button for each output: No

  • Service: NETIO Cloud (paid service, secured by TLS)

  • Open API (M2M protocols)

  • HTTP JSON (default)

  • MQTT-flex (extended MQTT, SSL enabled)

  • HTTP Push JSON

  • HTTP Push XML

  • SNMP v1

  • SNMP v3

  • Modbus / TCP

  • HTTP XML

  • URL API (http get) (outputs only)

  • Telnet (outputs only, backwards compatibility with KSHELL)

  • Lua support: No

  • Scheduler function: Yes

  • IP WatchDog function: No

  • Sending e-mails: No

  • Event log: Yes (web)

  • Power input: The “x” in the “3Px” model number specifies the plug type

  • Mechanical Power Switch: No

  • Power output: The “x” in the “3x” model number specifies the socket type (3 sockets)

  • Number of controlled outputs: 3

  • Electrical measurements: No

  • Number of metered outputs: 0

  • Available electrical socket versions:

    • Type F – DE schuko – PowerBOX 3PF (230V / 16A)

    • Type E – FR – PowerBOX 3PE (230V / 16A)

    • Type G – UK – PowerBOX 3PG (230V / 13A)

  • Internal consumption: 1-2 W


  • SPD – surge protection: Yes, type 3

  • Switching element: relay SPST-NO, ZVS

  • ZVS (Zero Voltage Switching): Yes

  • IOC (output state independent from FW updates): Yes

  • PowerUp state of outputs: On / Off / LAST state



  • Mechanical characteristics: Aluminium profile – 320 x 62 x 62 mm + cable 1.6 m

  • Protection: IP30

  • Sound output: No

  • Temperature range: -20°C to +65 °C

  • Designed and manufactured: European Union (Czech Republic, Prague)
