Neets Soundbar

Crisp Audio –  Great  for Video Conferencing

Experience the product



We bring your messages to life

With the new Neets Sound Bar – SB1 poor sound quality in video calls or meetings will never again spoil your experience. Now, high class sound comes in one easy-to-install sound bar with extremely good looks. The Neets Sound Bar – SB1 is a stylish sound bar, designed to bring your message to life. Whether you’re in a meeting presenting a video, an audio track or facilitating a conference call. The Sound Bar comes with a front cover in classic black. Or you can choose a blue, grey, red, or green front cover in the exclusive fabric Kvadrat Tonica 2 in 100% wool.

Audio modes to suit your purpose

The Neets Sound Bar – SB1 is a stylish sound bar, designed to bring your message to life. Whether you’re in a meeting presenting a video, an audio track or facilitating a conference call.

5 vibrant colors

The Sound Bar comes with a front cover in classic black. Or you can choose a blue, grey, red, or green front cover in the exclusive fabric Kvadrat Tonica 2 in 100% wool.

[qodef_call_to_action full_width=”no” type=”normal” show_button=”yes” button_position=”left” button_icon_pack=”” button_text=”Request a Quotation” button_link=”mailto:sales@av-intel.co.uk?subject=Neets Soundbar&body=Please send me more information on Neets Soundbar” button_background_color=”#fc7d1b” button_border_color=”#ffffff” button_text_color=”#ffffff”][/qodef_call_to_action]
[qodef_tabs style=”horizontal_tab” title_layout=”without_icon” tab_white_skin=”no”][qodef_tab icon_pack=”font_awesome” fa_icon=”” tab_title=”Features”]
  • Control System compatibility
    Compatible with all Neets Control Systems
  • Can be mounted anywhere or sit on a shelf
    Brackets for wall mounting included in the box
  • System

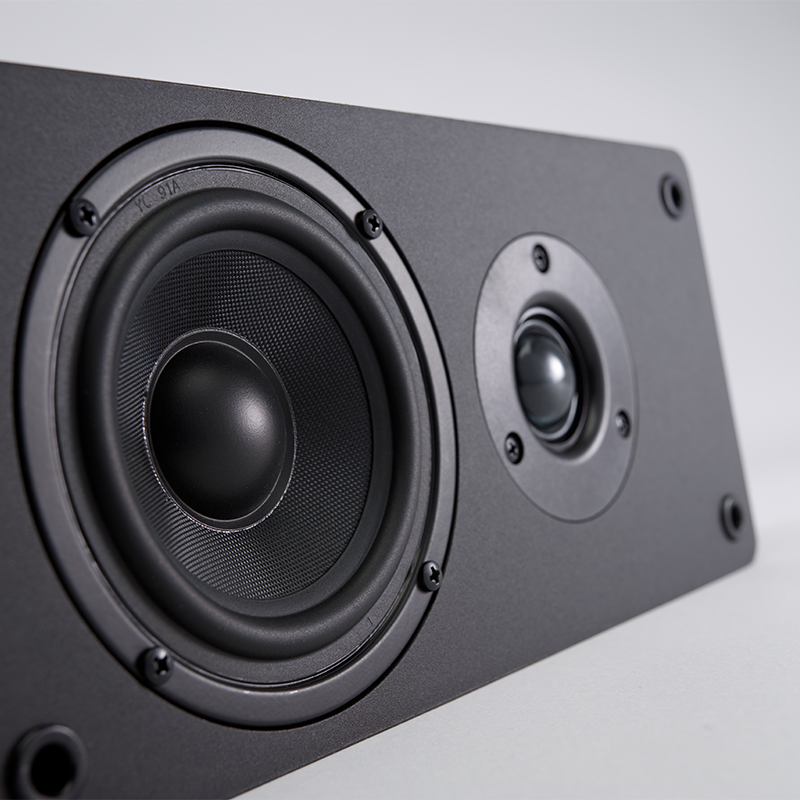

    2.0 stereo configuration, based on concept from stereo monitors: 2 set of 4” full-tone woofers + 1” tweeter
  • Amplifier
    Amplifier with built-in DSP functionality
  • Power on
    RS-232 or ”Wake-on-signal”
  • Cabinet
    All MDF construction is covered in black vinyl and the front grill is in fabric
  • Power indicator
    Power LEDs on the front integrated behind grill
  • VESA Mounting
    Compatible with VESA 400 and VESA 800 for mounting on carts and stands
[/qodef_tab][qodef_tab icon_pack=”font_awesome” fa_icon=”” tab_title=”Specifications”]

Audio output

Output power 4 x 20 Wrms
THD+N < 0.1 % @ 1 W
Woofer 2 x 4” dual magnet,
sandwich membrane
w/rubber surround
Tweeter 2 x 1” soft dome
Frequency Response 50 Hz – 20 kHz +/- 3 dB
Maximum SPL 106 dB SPL @ 1mUnbalanced audio input
Number of inputs 1 stereo input
Input impedance < 100 k Ohm
Wake on signal Yes
Connector 2 RCA female

Balanced audio input

Number of inputs 1 stereo input
Input impedance < 100 k Ohm
Connector 1 x 5 pin screw block

Digital audio input

Interface standard IEC 60958
AC-3, DTS decoding Not supported
Bit depth 16/24 bit
Sample rate 32/44.1/48/96/192 kHz
Wake on signal Yes
Connector 1 TOSLINK femaleOn/Off
Auto On/Off Yes
Wake on signal Yes

RS-232

Ports 1 x bidirectional
Baud rate 19200 bit/sec
Data bits 8
Parity None
Stop bits 1
Connector 1 x 3 pin screw block

Power input

Input voltage 24 VDC
Max power usage 50 W
Standby power usage < 0.5 W
Connector 5,5 mm DC plug

Power adaptor

Line voltage 100 VAC – 240 VAC
Line frequency 50 Hz – 60 Hz
Output voltage 24V
Max output current 2.5A



General
Enclosure Wood (MDF)
Enclosure finish Mate black vinyl
Front grille Textile covered MDF
Width 1018 mm / 40.1 inch
Depth 75 mm / 2.95 inch
Depth w. wall bracket 81mm / 3.18 inch
Height 130 mm / 5.1 inch
Weight 4.5 Kg
Shipping width 1120 mm / 44.1 inch
Shipping depth 150 mm / 5.9 Inch
Shipping height 200 mm / 7.8 Inch
Shipping weight 6.5 Kg
Storage temperature -20 °C to 50 °C
Storage moisture Non condensingPart no: 312-0040
