Neets Sound Bar SB -1
Neets Sound Bar SB -1
Perfect voice reproduction for video conferencing
Energy-efficient solution
Professional, controllable and standalone audio device
Minimalistic design to match any interior
Voice enhancement
The soundbar is specifically designed for perfect voice reproduction in any video conferencing setup.Sound Engine
A DSP processor with 3 built-in presets (Music, Voice, and Presentation) provides sharp audio in different room settings.Integrations
A professional soundbar that provides the connectivity required in a professional environment. Integrates with AV control systems using a serial RS-232 port.Energy Efficiency
Wake-on-signal functionality, control system integration, and class-D amplifiers make the soundbar an energy-efficient option for meeting rooms.
Speaker Configuration

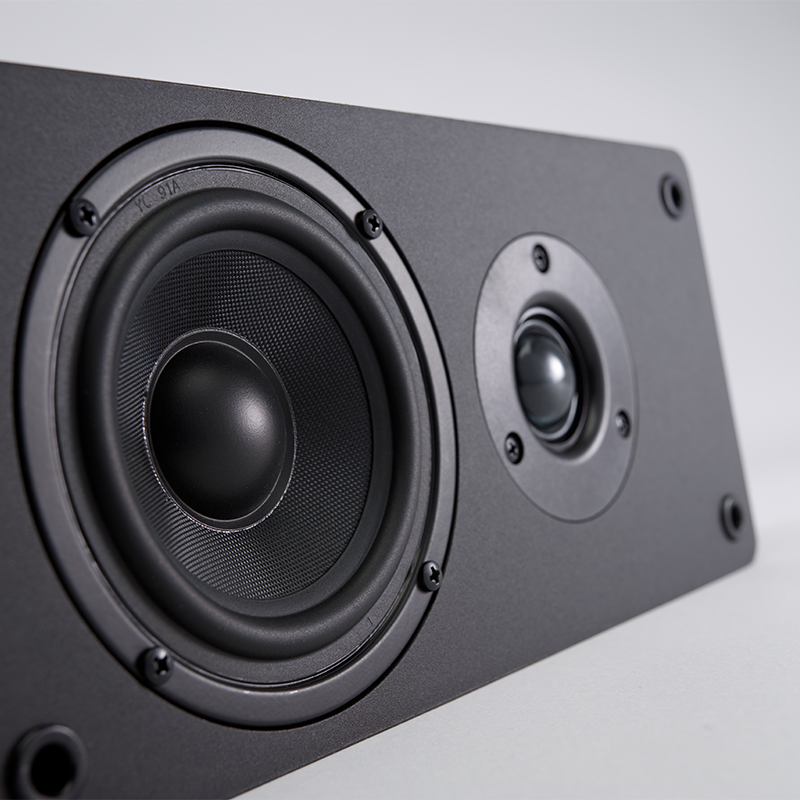

Full-range, front-facing speakers with 2.0 stereo configuration (2 x 4” full-tone woofers and 2 x 1” tweeters).Inputs
The soundbar has dedicated balanced, unbalanced, and digital inputs to integrate the soundbar in professional audio solutions.Placement options
The sound bar can be wall-mounted with the included wall brackets, mounted on a cart or stand or placed on a flat surface using the included rubber feet.Color options
The sound bar is available with front cover in classic black or 4 additional colors (black, grey, red, blue, green). The coloured covers are made of 100% wool from the luxury textile manufacturer Kvadrat.



Technical Specifications:
Audio output
Output power 4 x 20 Wrms
THD+N < 0.1 % @ 1 W
Woofer 2 x 4” dual magnet, sandwich membrane w/rubber surround
Tweeter 2 x 1” soft dome
Frequency Response: 50 Hz - 20 kHz +/- 3 dB
Maximum SPL: 106 dB SPL @ 1m
Unbalanced audio input
1 x stereo input
Input impedance: < 100 k Ohm
Wake on signal: Yes
Connector: 2 RCA female
Balanced audio input
1 x stereo input
Input impedance: < 100 k Ohm
Connector: 1 x 5 pin screw block
Digital audio input
Interface standard: IEC 60958
AC-3, DTS decoding not supported
Bit depth: 16/24 bit
Sample rate: 32/44.1/48/96/192 kHz
Wake on signal: Yes
Connector: 1 TOSLINK female
On/Off
Auto On/Off: Yes
Wake on signal: Yes
RS-232
Ports: 1 x bidirectional
Baud rate:19200 bit/sec
Data bits: 8
Parity: None
Stop bits: 1
Connector: 1 x 3 pin screw block
Power input
Input voltage: 24 VDC
Max power usage: 50 W
Standby power usage: < 0.5 W
Connector: 5,5 mm DC plug
Power adaptor
Line voltage:100 VAC – 240 VAC
Line frequency: 50 Hz – 60 Hz
Output voltage: 24V
Max output current: 2.5A
Power indicator
Power LEDs behind front grill
General
Enclosure: Wood (MDF)
Enclosure finish: Matte black vinyl
Front grill: Textile covered MDF
Width:1018 mm / 40.1 inch
Depth: 75 mm / 2.95 inch
w. wall bracket: 81mm / 3.18 inch
Height:130 mm / 5.1 inch
Weight 4.5 Kg
Shipping
Width: 1120 mm / 44.1 inch
Depth: 150 mm / 5.9 Inch
Height: 200 mm / 7.8 Inch
Weight: 6.5 Kg
Storage temp. : -20 °C to 50 °C
Storage moisture: Non condensing
