SieRRa II

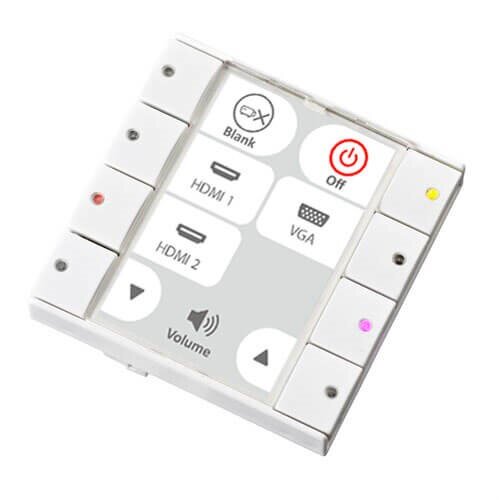

8-Button Keypad with remote monitoring and iOS/Android

Neets Control – SieRRa II provides uniform AV control interface in all rooms through an 8-Button Keypad with built-in controller.

SieRRa II also enables touch control with a tablet (Neets touch panels and iOS) through a built-in webserver. PoE support to avoid an external PSU.

Email notification on lamp/filter hours and warnings as well as Central Control monitoring is supported as a standard.



  • 8-Button AV control system with Neets touch panels and IOS support
    The world’s most compact AV control system – no external processors required

  • 8 Freely configurable keypad buttons
    Provides uniform AV control interface in all rooms and all 8 buttons can be configured for any function

  • 1 Bi-directional RS-232 port or 2 IR ports
    Used for controlling projectors, displays, amplifiers & other AV devices with feedback functionality

  • 2 Uni-directional RS-232 or 4 IR ports:
    Used for sending commands to projectors or other AV devices using serial or infrared communication

  • 1 Ethernet port
    Used for controlling 10 LAN devices and connection to Central Control and Project Designer

  • 3 General Purpose I/O ports
    Used for input/output control of relays, switches and sensors

  • 1 NEB port (Neets Expansion Bus)
    Add up to 5 additional devices - choose between Keypad, Level Control or Port Expansion (serial and I/O)

  • 1 front USB port
    Used for easy system configuration, uploading and downloading project files, service and maintenance

  • PoE support
    Includes Power over Ethernet support to avoid external PSU (12V PSU included)

  • Email notifications and warnings
    Email notification on lamp/filter hours and warnings

  • Infrared learner
    SieRRa II comes with a built-in IR learner.

  • Included:
    Configuration through our free and no-license software: Neets Project Designer



Technical Specifications:

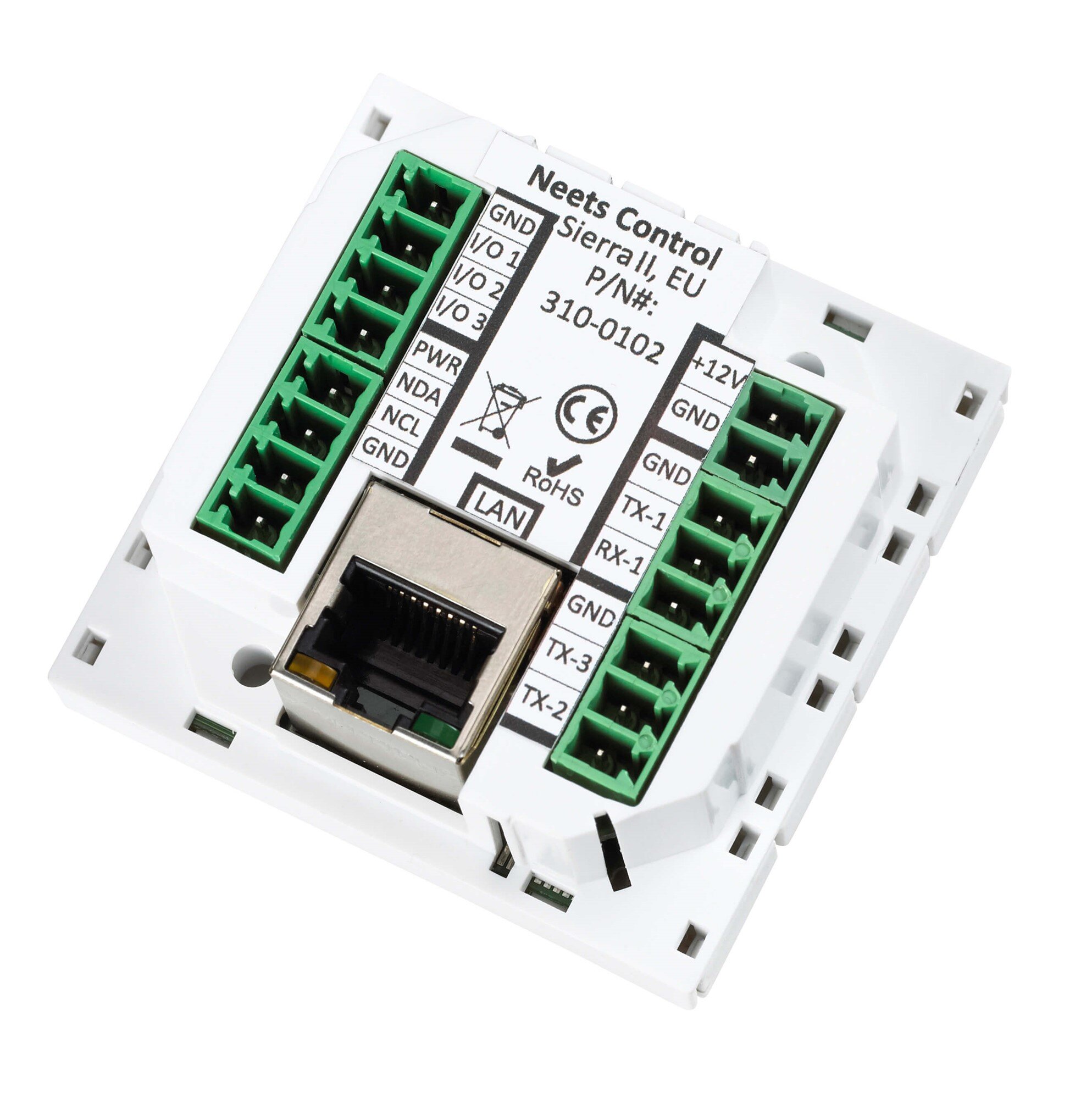

Communication ports:
1 x RS-232 (TX and RX) or 2 IR
Baud: 1200 – 115200
Data Bit: 7/8
Parity: None, Even, Odd
Stop Bit: 1/1.5/2

2 x RS-232 or 4 IR (TX only)
Baud: 1200 – 115200
Parity: None, even, odd
Stop Bit: 1/1.5/2

IR:
Transmit
381 Hz – 500 kHz
Devices: 2

1 x Ethernet port:
Speed: 10/100 Mbit
auto-detect
Devices: 10

3 x I/Os (GPIO)
Input:
Sense Low: <1 VDC
Sense High: >4 VDC

Output:
Type: Open drain
Max Voltage: 24 VDC
Max Current: 0.5 A

Neets Expansion Bus (NEB)
12 V (0.3 A) output

Included in box:
12 V PSU (110- 230V AC)

PoE – Power over Ethernet
Complies with IEEE 802.3
and 802.3at, type 1

Dimensions:
(without frame) (EU):
Width: 55 mm
Height: 55 mm
Depth: 17 mm

Dimensions:
(without frame) (DK):
Width: 72 mm
Height: 45 mm
Depth: 17 mm

Dimensions:
(without frame) (US):
Width: 1,77 inches
Height: 4,13 inches
Depth: 0,94 inches

Weight:
90 g/ 3,17oz

Compliancy:
Approval: CE, FCC (part 15, class A)
EN 55022
EN 55024

Product item numbers:
310-0102: Neets Control – SieRRa II,
EU - Polar white
310-0103: Neets Control – SieRRa II,
EU - Anthracite
310-0202: Neets Control – SieRRa II,
DK - Polar white
310-0203: Neets Control – SieRRa II,
DK - Anthracite
310-0402: Neets Control – SieRRa II,
US - Polar white
