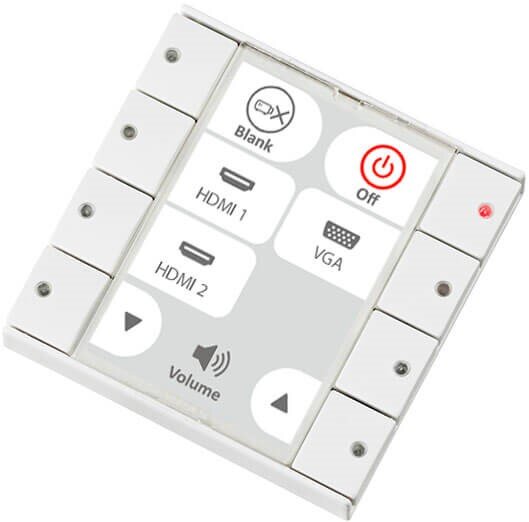

Echo Plus



8-Button Keypad with Remote Monitoring

Neets Control – EcHo Plus is designed to provide uniform AV control interface in all rooms through an 8-Button Keypad with built-in controller.

For installations with multiple rooms, the included Central Control software makes it possible to monitor rooms with EcHo Plus installed from a central computer.



  • 8-Button AV control system with Remote Monitoring
    The world’s most compact AV control system – no external processors required

  • 8 Freely configurable keypad buttons
    Provides uniform AV control interface in all rooms and all 8 buttons can be configured for any function

  • 1 Bi-directional RS-232 port
    Used for controlling projectors, displays, amplifiers & other AV devices with feedback functionality

  • 1 Uni-directional RS-232 or 1 IR port
    Used for sending commands to projectors or other AV devices using serial or infrared communication

  • 1 Ethernet port
    Used for controlling two LAN devices and connection to Central Control and Project Designer

  • 3 General Purpose I/O ports
    Used for input/output control of relays, switches and sensors

  • 1 NEB port (Neets Expansion Bus)
    Add 2 additional devices - choose between Keypad, Level Control or Port Expansion (serial and I/O)

  • 1 front USB port
    Used for easy system configuration, uploading and downloading project files, service and maintenance

  • Email notifications and warnings
    Email notification on lamp/filter hours and warnings

  • Included
    Configuration through our free and no-license software: Neets Project Designer



Technical Specifications:

Communication ports:
1 x RS-232 (TX and RX)
Baud: 1200 – 115200
Data Bit: 7/8
Parity: None, Even, Odd
Stop Bit: 1/1.5/2

1 x RS-232 or IR (TX only)
Baud: 1200 – 115200
Parity: None, even, odd
Stop Bit: 1/1.5/2

IR:
Transmit
381 Hz – 500 kHz
Devices: 2

1 x Ethernet port:
Speed: 10/100 Mbit
auto-detect
Devices: 2

3 x I/Os (GPIO)
Input:
Sense Low: <1 VDC
Sense High: >4 VDC

Output:
Type: Open drain
Max Voltage: 24 VDC
Max Current: 0.5 A

Neets Expansion Bus (NEB)
12 V (0.3 A) output
2 devices

Included in box:
12 V PSU (110- 230V AC)

Dimensions:
(without frame) (EU):
Width: 55 mm
Height: 55 mm
Depth: 17 mm

Dimensions:
(without frame) (DK):
Width: 72 mm
Height: 45 mm
Depth: 17 mm

Dimensions:
(without frame) (US):
Width: 1,77 inches
Height: 4,13 inches
Depth: 0,94 inches

Weight (EU,DK,US)
90 g/ 3,17 oz

Compliancy:
Approval: CE, FCC (part 15, class A)
IEC/ EN 61000-6-1
IEC/ EN 61000-6-2

Product item numbers:
310-0152:
Neets Control – EcHo Plus,
EU - Polar white
310-0252:
Neets Control – EcHo Plus,
DK - Polar white
310-0452:
Neets Control – EcHo Plus,
US - Polar white
