Neets AIFa II



Rack mounted control system with Neets touch panels and iOS support

Neets Control – AlFa II provides easy control of all room functions. AlFa II is particularly good for integrating videoconference.

AlFa II also enables touch control with a tablet (Neets touch panels or iOS) and you can create your own GUI design. Adding NEB extensions you can control AlFa II with a keypad or level control and with Neets Central Control software, you have easy room monitoring. AlFa II is a versatile AV control system and offers a variety of AV opportunities



  • Rack mounted AV control system with Neets touch panels and IOS support
    The world’s most compact AV control system – no external processors required

  • 3 Bi-directional RS-232 port or 6 IR ports
    Used for controlling projectors, displays, amplifiers & other AV devices with feedback functionality

  • 2 Uni-directional RS-232 or 4 IR ports
    Used for sending commands to projectors or other AV devices using serial or infrared communication

  • 1 Ethernet port
    Used for controlling 10 LAN devices and connection to Central Control and Project Designer

  • 24 General Purpose I/O ports
    Used for input/output control of relays, switches and sensors

  • Built-in relays
    4 x potential free relays (assignable)

  • 1 NEB port (Neets Expansion Bus)
    Add. up to 5 additional devices - choose between Keypad, Level Control or Port Expansion (serial and I/O)

  • Custom graphical user interface (GUI)
    Create your own custom graphical user interface for the AV-installation in your own design

  • Built-in Infrared Learner
    IR learner built into the front for easy IR code learning

  • Automatic timer functions
    A build-in timer can be set to switch a projector or a screen off after a period of inactivity

  • IEC Mains Adaptor - Optional
    With IEC Mains Adaptor, you can easily forward power to other rack units in a cabinet

  • Email notifications and warnings
    Email notification on lamp/filter hours and warnings

  • Included
    Configuration through our free and no-license software: Neets Project Designer

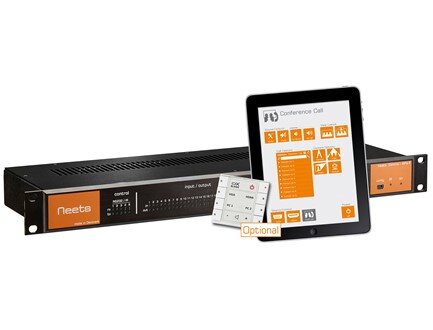

av-control-system_alfa-ii-with-ipad (1).jpeg

Technical Specifications:

Communication ports:
3 x RS-232 (TX and RX) or 6 IR
Baud: 1200 – 115200
Data Bit: 7/8
Parity: None, Even, Odd
Stop Bit: 1/1.5/2

2 x RS-232 or 4 IR (TX only)
Baud: 1200 – 115200
Parity: None, even, odd
Stop Bit: 1/1.5/2

IR:
Transmit
400 Hz – 500 kHz
Devices: 10

1 x Ethernet port:
Speed: 10/100 Mbit
auto-detect
Devices: 10

24 x I/Os (GPIO)
Input:
Sense Low: <1 VDC
Sense High: >4 VDC

Output:
Type: Open drain
Max Voltage: 24 VDC
Max Current: 0.5 A

Built-in relays
4 x potential free (assignable)
Power capacity: 230 VAC/ 8 A
Note: Contact Neets for screen
sized above 3 meter.

Neets Expansion Bus (NEB)
12 V (0.3 A) output
5 devices

Included in box
1 x 240 IEC cable
Phoenix connectors

AC line input
100-240 V

Dimensions:
Width: 483 mm/ 437 mm
Height: 44 mm (1U)
Depth: 141 mm

Dimensions:
Width: 19,01 inches/ 17,20 inches
Height: 1,73 inches (1U)
Depth: 5,55 inches

Weight:
1.9kg/ 4.1lbs/ 67,02 oz

Compliancy:
Approval: CE
IEC/EN 61000-6-1
IEC/EN 61000-6-2

Product item numbers:
310-0301: Neets Control – AlFa II
