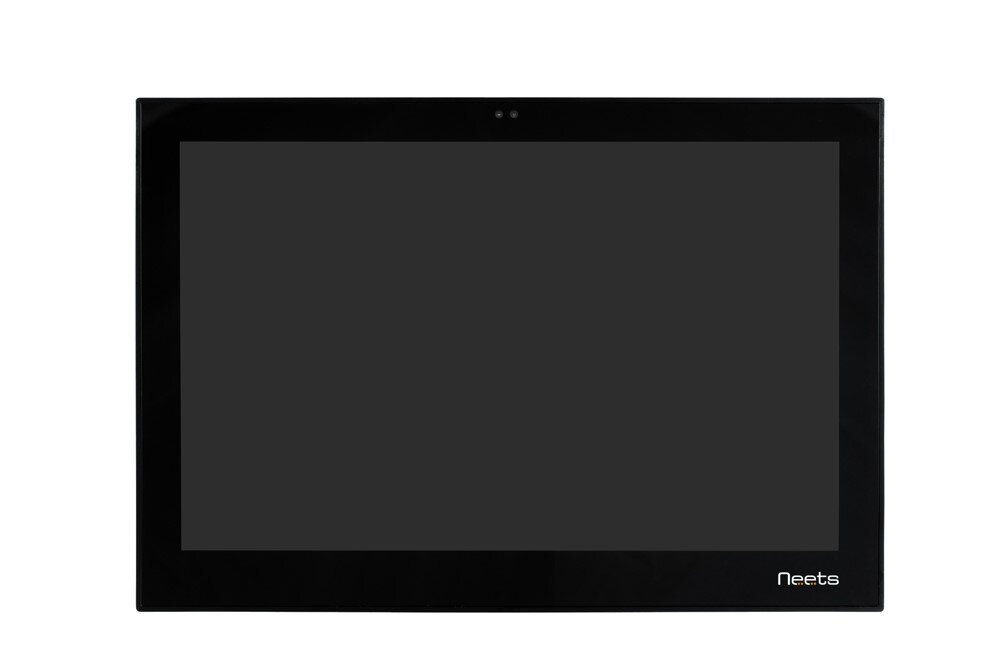

Neets 7” Touch Panel



One hub to control all your equipment

  • Control the room with ease

  • Clean design with a bright screen

  • Easy installation into your existing outlets

  • Customise it and make it your own

  • Control of anything and everything

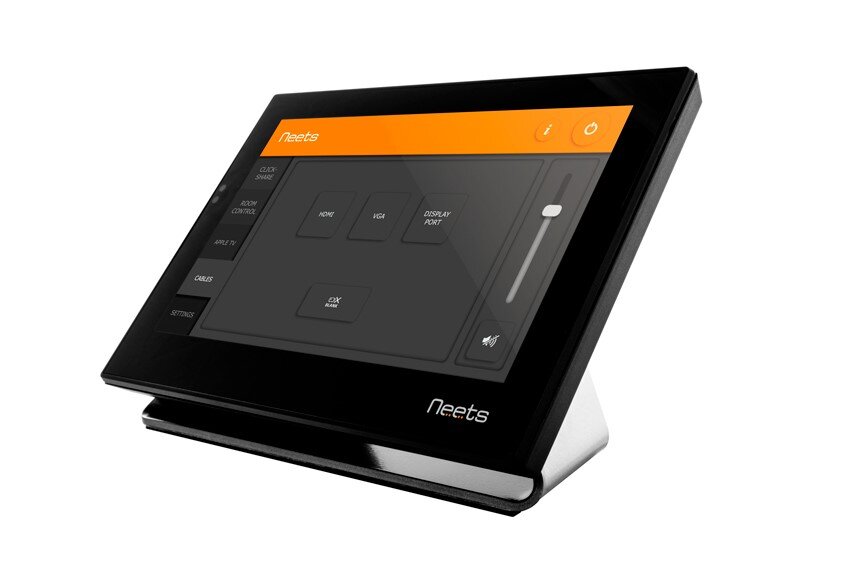

7inch_side_arona_clipped (1).jpeg

  • Control System compatibility
    Compatible with Neets Control Systems Sierra II, TanGo, AlFa II and DelTa

  • Perfect for video conferencing
    The 7" panel is perfect for online connected rooms such as meeting rooms or classrooms. Making control of camera pan/tilt/zoom and selecting to record the meeting plus levels on speakers outputs and microphone inputs a breeze to control.

  • Wall or table mounted

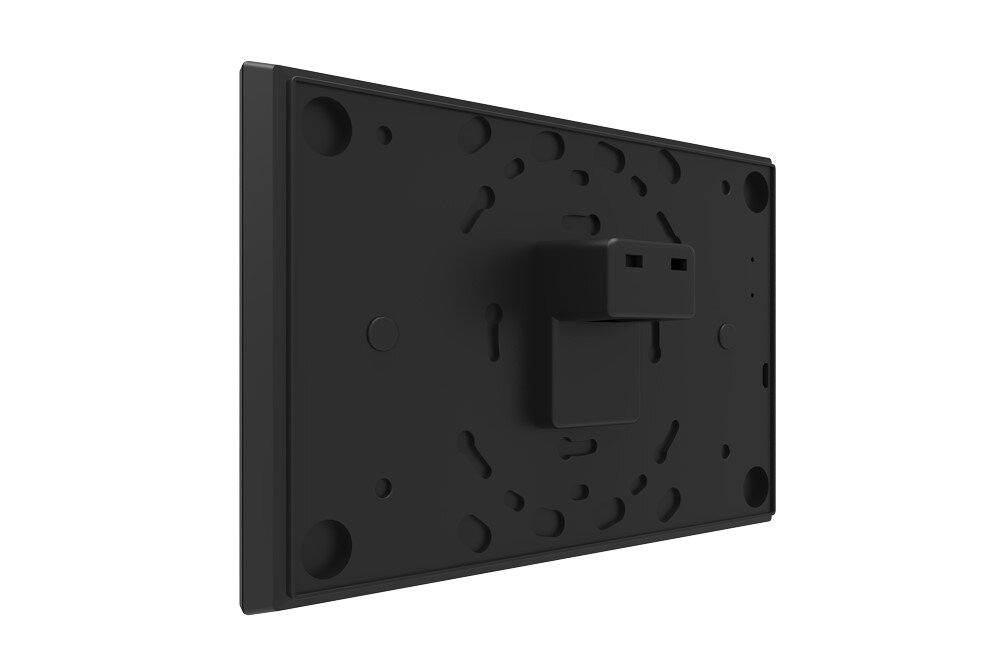

    Fits standard 1-gang DK, EU or US back box. Wall bracket included. Table mount is an accessory

  • Design Templates included
    Several GUI design themes and templates are available in Neets Project Designer, enabling to create an attractive and user-friendly touch panel interface.

  • Proximity Sensor
    Has a proximity sensor that detects presence nearby

  • PoE Powered
    Power the Touch Panel with a compliant PoE power supply (PoE injector not included)

  • Easy Upgrade
    USB for firmware upgrade on the back

  • Technical support
    For help please visit our knowledge base



Technical Specifications:

Physical Dimensions:
H: 120 mm / 4.72 inches
W: 180 mm / 7.08 inches
D: 41,4 mm / 1.63 inches
-On wall: 16mm / 0.63 inches

Weight:
Product: 0,33 Kg
Wall Bracket: 0,175 Kg
Shipping: 0,85 Kg

Environment:
Operating Temp: 0 to 40 °C
Storage Temp: 0 to 60 °C

Connections:
RJ45 with PoE – For both Power and Ethernet communication
Micro USB (for FW upgrade only)

Switches:
Pin hole switch:
1: Access to Admin settings
2: Factory Reset switch
3: For FW upgrade only

Touch Screen:
Scratch resistant glass-on-glass touch screen

Display:
7” IPS Display
Resolution: 1024x595 pixels
Dpi : 170
Brightness: 350 nits (cd/m2)
LED Backlight Lifetime: 20000 hours

Sensors:
Proximity sensor – For automatic display activation
Ambient Light sensor – For automatic backlight dimming

Power:
Power over Ethernet (PoE), IEEE802.3af, 48V
Class 3 (up to 13 watt)
Note: PoE Injector not included.

Compliancy; CE, FCC

Part no: 313-0001
