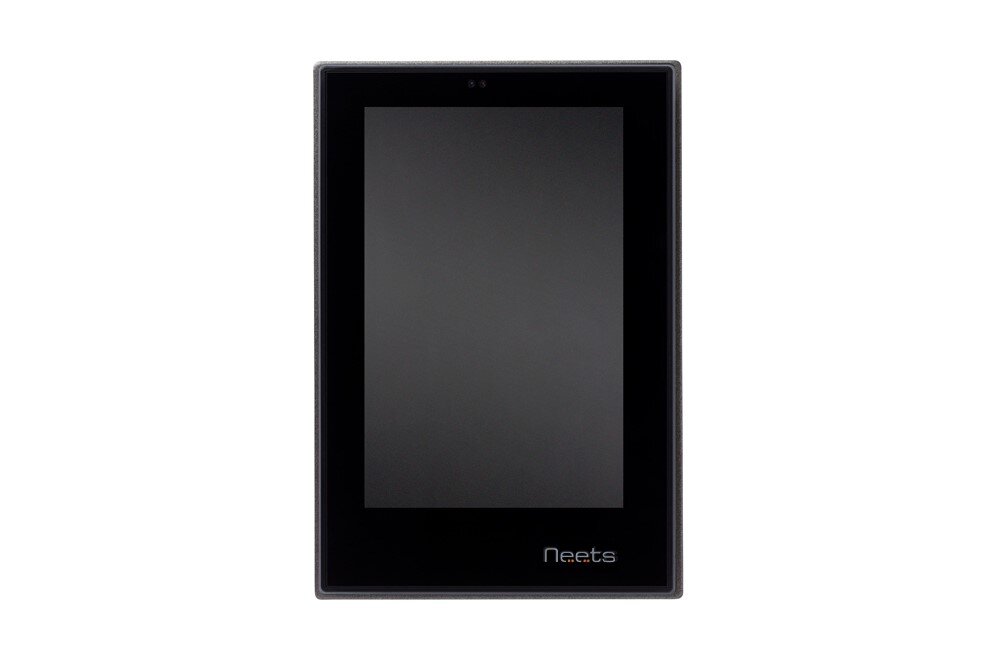

Neets 4” Touch Panel
Intuitive control interface in a small size
Familiar interface
Control the room with ease
Make it your own
Control of anything and everything
Easy installation
Recognizable format
The format of the 4” touch panel is known by user from smartphones, giving a higher degree of recognizability.The best control system for the job
The panel offers a separate control system setup, allowing the system to match your needs perfectly. The design of the 4” touch panel is great for the LiMa and TanGo control systems.Perfect for video conferencing
The 4" panel is perfect for smaller online connected rooms such as huddle spaces and smaller meeting room. Making control of camera presets and the volume and microphone level a breeze to control.

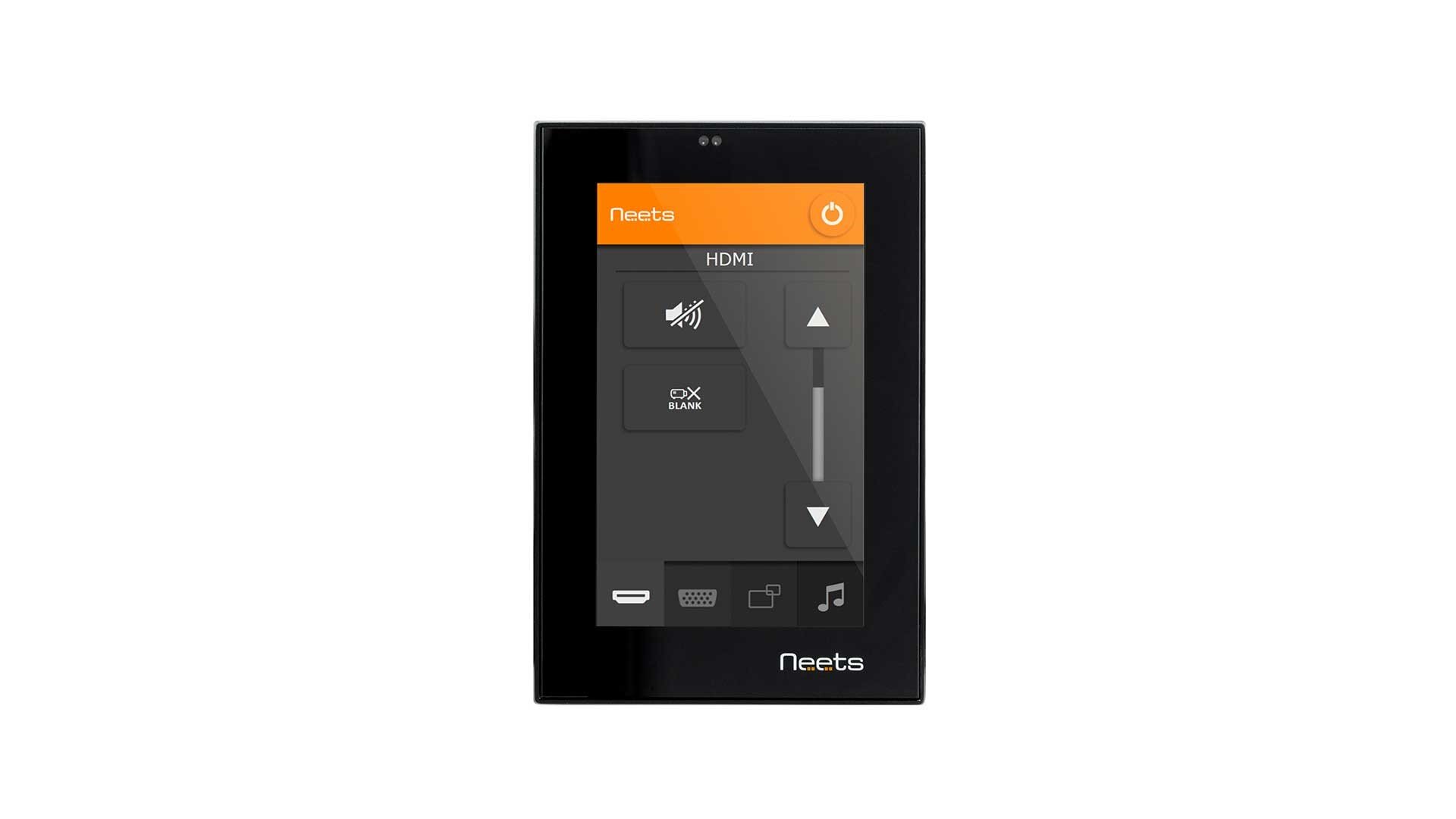

Intuitive user interface

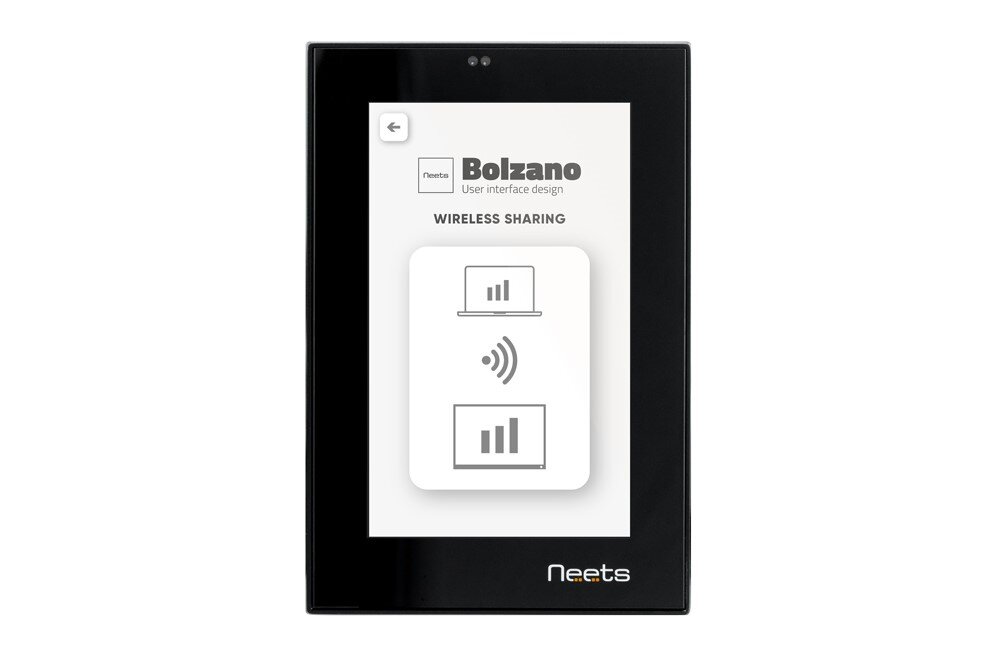

Several GUI design themes and templates are available in Neets Project Designer, enabling to create an attractive and user-friendly touch panel interface.Wall mounted
Fits standard 1-gang DK, EU or US back box. Wall bracket included.PoE Powered
Power the touch panel with a compliant PoE power supply (PoE injector not included)Technical support
For help please visit our knowledge base
Technical Specifications:
4" touch panel
800x480 resolution IPS panel with full viewing angle (brightness 400 nits).
Dpi : 234
PoE support
Power through PoE (Power over Ethernet).
Class 2 (up to 6,5 watt)
Sensors
Proximity sensor – For automatic display activation
Ambient Light sensor – For automatic backlight dimming.
Touch Screen
2-point capacitive touch screen
Scratch resistant glass-on-glass touch screen.
Connections
RJ45 with POE – For both Power and Ethernet communication
Micro USB (for FW upgrade only).
Power
Power over Ethernet (PoE), IEEE802.3af, 48V
Compliancy
Approval: CE, FCC
Swithces
Pen hole switch:
1. Recover
2. Home
3. Reboot
4. Settings

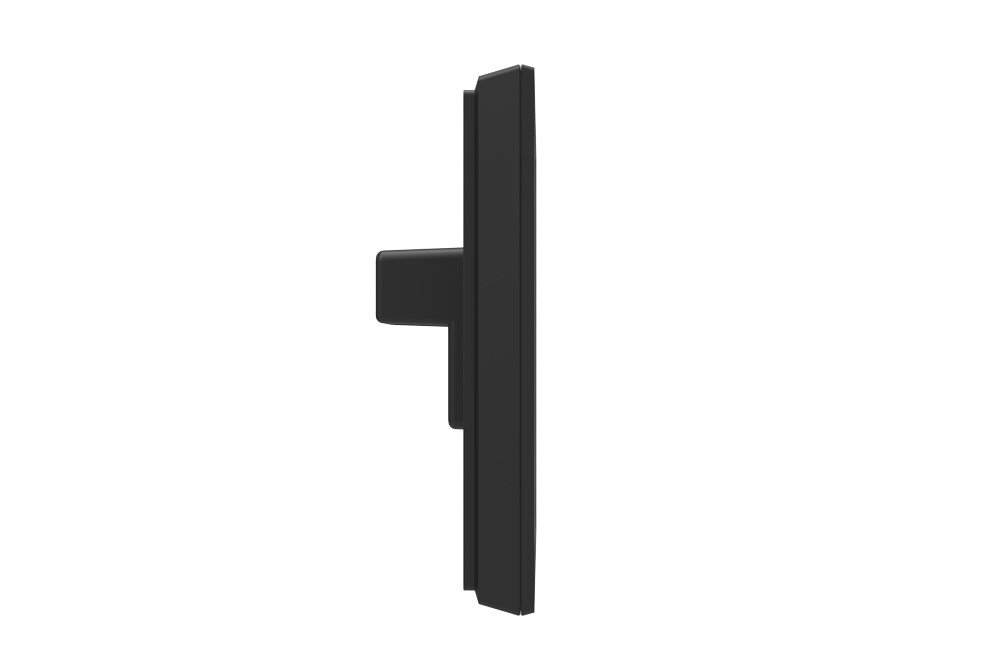

Wall mount
Fits standard 1-gang DK, EU or US
back box and wall bracket included.
Design Templates
Use graphical templates or completely customize the GUI in Project Designer.
Control System compatibility
Compatible with Neets Control Systems SieRRa II, TanGo, AlFa II, DelTa and LiMa.
Dimensions
Width: 77 mm / 3.03 inches
Height: 115 mm / 4.53 inches
Depth: 41,4 mm / 1.63 inches
- On wall: 17mm / 0.67 inch
Shipping dimensions
Width: 135 mm / 5.31 inches
Height: 165 mm / 6.5 inches
Depth: 60 mm / 2.36 inches
Weight
Product: 0,16 kg
Wall Bracket: 0,09 kg
Shipping: 0,36 kg
Environment
Operating Temp: 0 to 40 C / 32 to 104F
Storage Temp: 0 to 60 C / 32 to 140F
Operation moisture: Humidity: 10% to 90% RH
Product item number
313-0005
