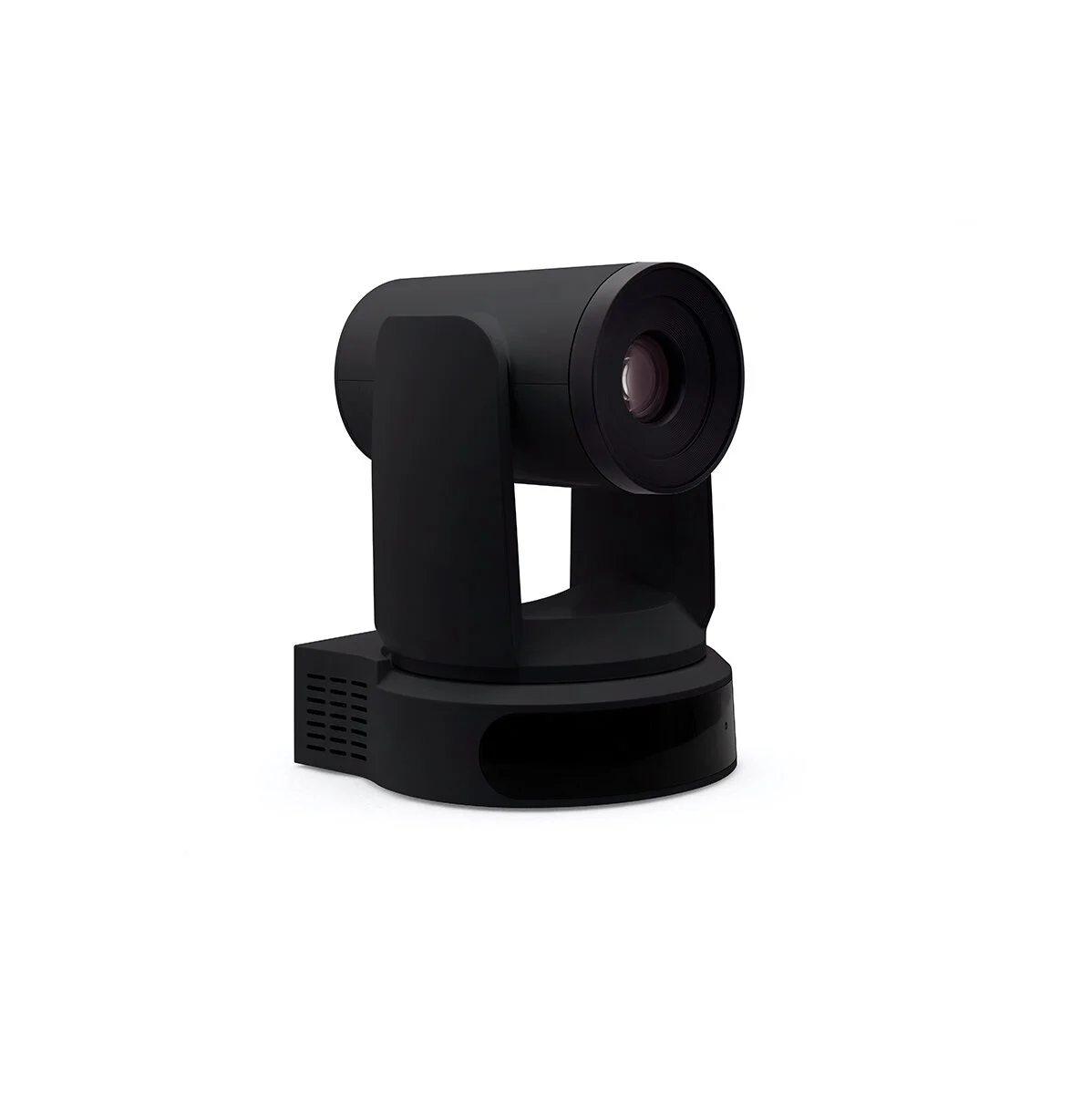

MS-HD72-12S



HD Video Conference Camera

Key Features

  • 72.5° Wide-angle Lens + 16x Digital Zoom
    Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom (optional).

  • H.265 Support
    H.265 encoding support conference video camera, enabling full HD 1080p/60fps video stream by ultra-low bandwidth.

  • 1080P Full HD
    Panasonic’s 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image.

  • Ultra-high Frame Rate
    The output frame rate up to 60fps in 1080P, up to 120fps output in 720P (supported by network only), 640x480P can be as high as 240fps (supported by network only, optional).

  • Face Detection
    Built-in face detection module, enabling PTZ tracking (optional).

  • AAC Audio Encoding
    Support AAC audio encoding, better sound quality and smaller bandwidth.

  • Local Storage
    Support local storage module, directly recording to local USB flash disk without NVR.

  • Low-light
    High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear.

  • Abundant & Perfect Interface
    Support HDMI output, 3G-SDI interface, effective transmission distance up to 150 meters (under 1080p30). HDMI, SDI, Network can output at the same time. It also support CVBS interface (supported by certain models only).

  • Remote Control
    Using RS232/485 interface, all the parameters of the camera can be remote controlled by the high-speed communications.



Technical Specifications:

  • Sensor: 1/2.7″, CMOS, Effective Pixel: 2.07M

  • Scanning Mode: Progressive

  • Lens: 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8

  • Digital Zoom: 16x (optional)

  • Minimal Illumination: 0.5Lux @ (F1.8, AGC ON)

  • Shutter: 1/30s ~ 1/10000s

  • White Balance: Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual

  • Backlight Compensation: Support

  • Digital Noise Reduction: 2D&3D Digital Noise Reduction

  • Video S/N: ≥55dB

  • Horizontal Angle of View: 72.5° ~ 6.9°

  • Vertical Angle of View: 44.8° ~ 3.9°

  • Horizontal Rotation Range: ±170°

  • Vertical Rotation Rang:e -30° ~ +90°

  • Pan Speed Range: 1.7° ~ 100°/s

  • Tilt Speed Range: 1.7° ~ 69.9°/s

  • H & V Flip: Support

  • Image Freeze: Support

  • PoE: Support (optional)

  • Local storage: Support

  • Number of Preset: 255

  • Preset Accuracy: 0.1°

  • HD Output:
    – 1 x HDMI: Version 1.3
    – 1 x 3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard

  • SD Output: 1 x CVBS: 3.5mm mini jack, 1Vp-p, 75Ω

  • Audio Interface: 1-ch: 3.5mm Audio Interface, Line In

  • Network: 1 x RJ45: 10M/100M Ethernet Interface

  • USB: 1 x USB 2.0: Type A female jack

  • Communication Interface:
    – 1 x RS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
    – 1 x RS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only
    – 1 x RS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P

  • Power Jack: JEITA type (DC IN 12V 0

  • Input Voltage: DC 12V

  • Current Consumption: 1.0A (Max)

  • Operating Temperature: -10°C ~ 40°C (14°F ~ 104°F)

  • Storage Temperature: -40°C ~ 60°C (-40°F ~ 140°F)

  • Power Consumption: 12W (Max)

  • Net Weight: 1.35Kg (3.0lb)
