MS-210U1R



HDBaseT Extender Set – 4K to 40m (10G), 70m @ 1080p. USB 2.0 (x1) & RS-232 pass through. HDCP2.2 compliant

The MSolutions MS-210U1R is a 4K HDMI / KVM HDBaseT extender set allowing for uncompressed video and audio to be extended up to 40m at 4K UHD (10.2Gbps), and 70m at 1080p or lower resolutions. A single USB2.0 channel allows for bi-directional USB client to host connectivity for a variety of applications. The unit also features RS-232 serial pass-through.



  • Uncompressed extension of HDMI at resolutions up to 4K 60Hz 4:2:0 / 4K 30Hz 4:4:4 using HDBaseT technology

  • 4K signal extension to 40m over single CAT including HDR formats suppported under 10.2Gbps

  • 1080p or lower video resolutions up to 70m over single CAT

  • Supports HDMI pass-through all known HDMI audio formats including Dolby Atmos / DTS:X

  • 1x USB2.0 channel for KVM connectivity of a USB device across the link – max 200Mbps data rate pass-through

  • Flexible USB extension for: USB2.0 cameras, touch screens, smart boards, hard drivers, games controllers, USB audio devices, printers, scanners or HID’s (mouse or keyboard)

  • Bi-directional RS-232 serial pass through

  • CEC (Consumer Electronics Control) pass through

  • HDCP2.2 compliant



Technical Specifications:

  • Video connectivity TX: 1x HDMI input (female), 1x HDBaseT output (RJ45 keystone)

  • Video connectivity RX: 1x HDBaseT input (RJ45 keystone), 1x HDMI output (female)

  • USB connectivity (TX & RX): 1x USB Type A (female)

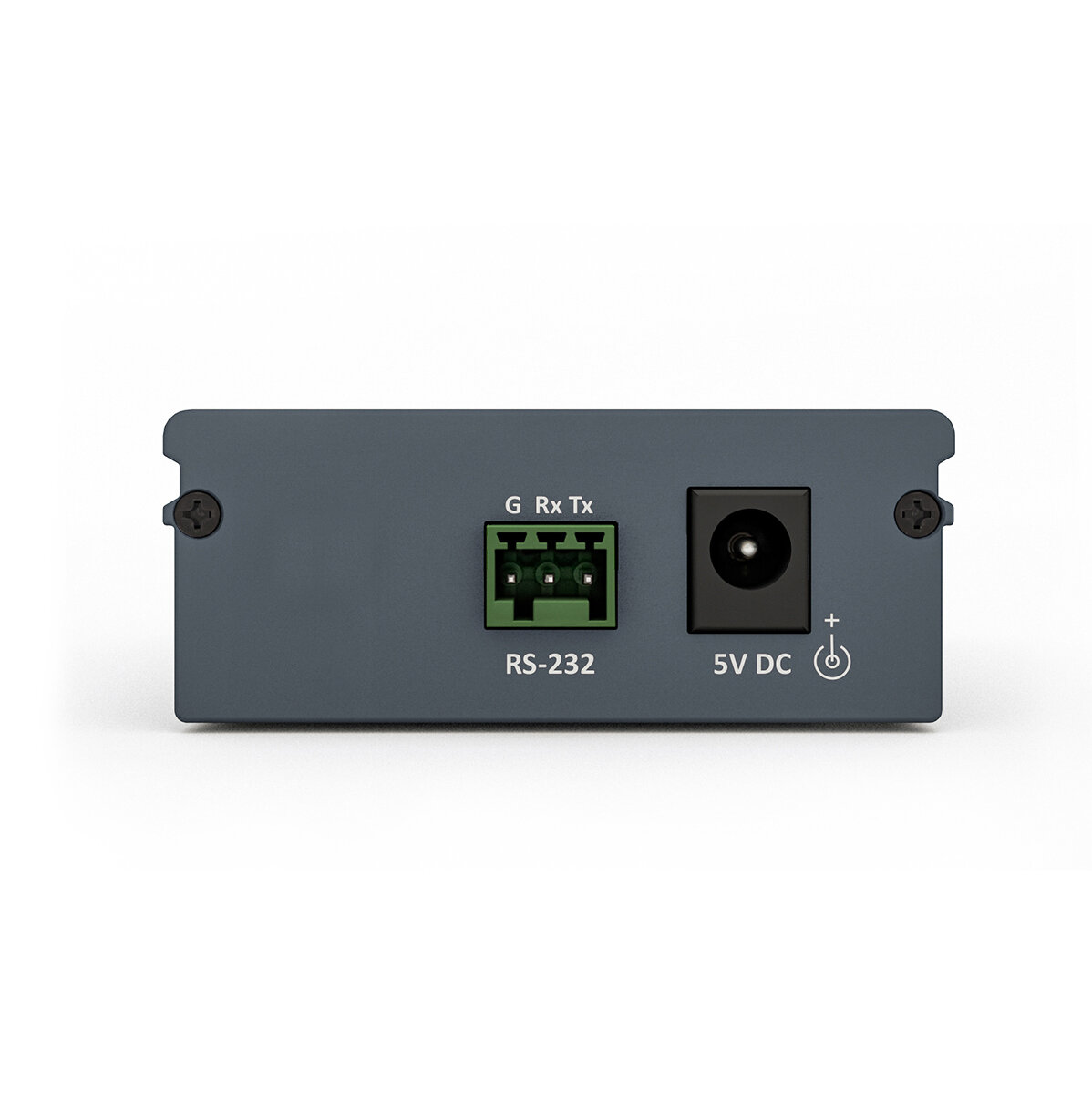

  • RS-232 connectivity (TX & RX): 1x 3-pin phoenix connector, block included

  • Power supply: 2x 5V 2A DC

  • Power consumption: 8W

  • Individual unit dimensions (W x D x H): 60 x 84 x 25mm

  • Individual unit weight: 0.1kg

  • Package dimensions (W x D x H): 160mm x 130mm x 75mm

  • Package weight: 0.5kg

  • Master carton quantity: 18

  • Master carton dimensions (W x D x H): 540 x 270 x 260mm

  • Master carton weight: 10kg

  • Operating temperature: 32°F to 104°F (0°C to 40°C)

  • Storage temperature: -4°F to 140°F (-20°C to 60°C)

  • Operating humidity: 0-80% non condensing
