ONE Series CAT 6A F/UTP - 152m Pro Box

Our ONE series CAT6A cable has been designed and engineered to exceed the bandwidth requirements of 4K video installations. This premium shielded, twisted pair (F/UTP) cable with grounding, provides industry-leading protection required in complex systems from external cable noise sources, also known as alien crosstalk or EMI (electromagnetic interference). Supplied in a 305m professional pull box, the Rapid-EZ reel allows the easy flow of cable from the box, whilst also keeping the cable from twisting and curling, minimising snags during installation and saving time.

• Suitable for 10BASE-T, 100BASE-TX, 1000BASE-T/1000BASE-TX (Gigabit) & 10GBaseT, PoE & PoE+

• F/UTP Ethernet CAT6a

• Four Twisted Pairs 23 AWG Solid Copper Conductors

• PVC Separator Reduces Crosstalk Between Pairs

• Mylar laminated aluminium tape shielding with a 26AWG drain wire

• Suitable for IDC Terminations

• Supplied in the durable Rapid-EZ-Reel packaging – 152.5m (500ft)

• Metre Marked

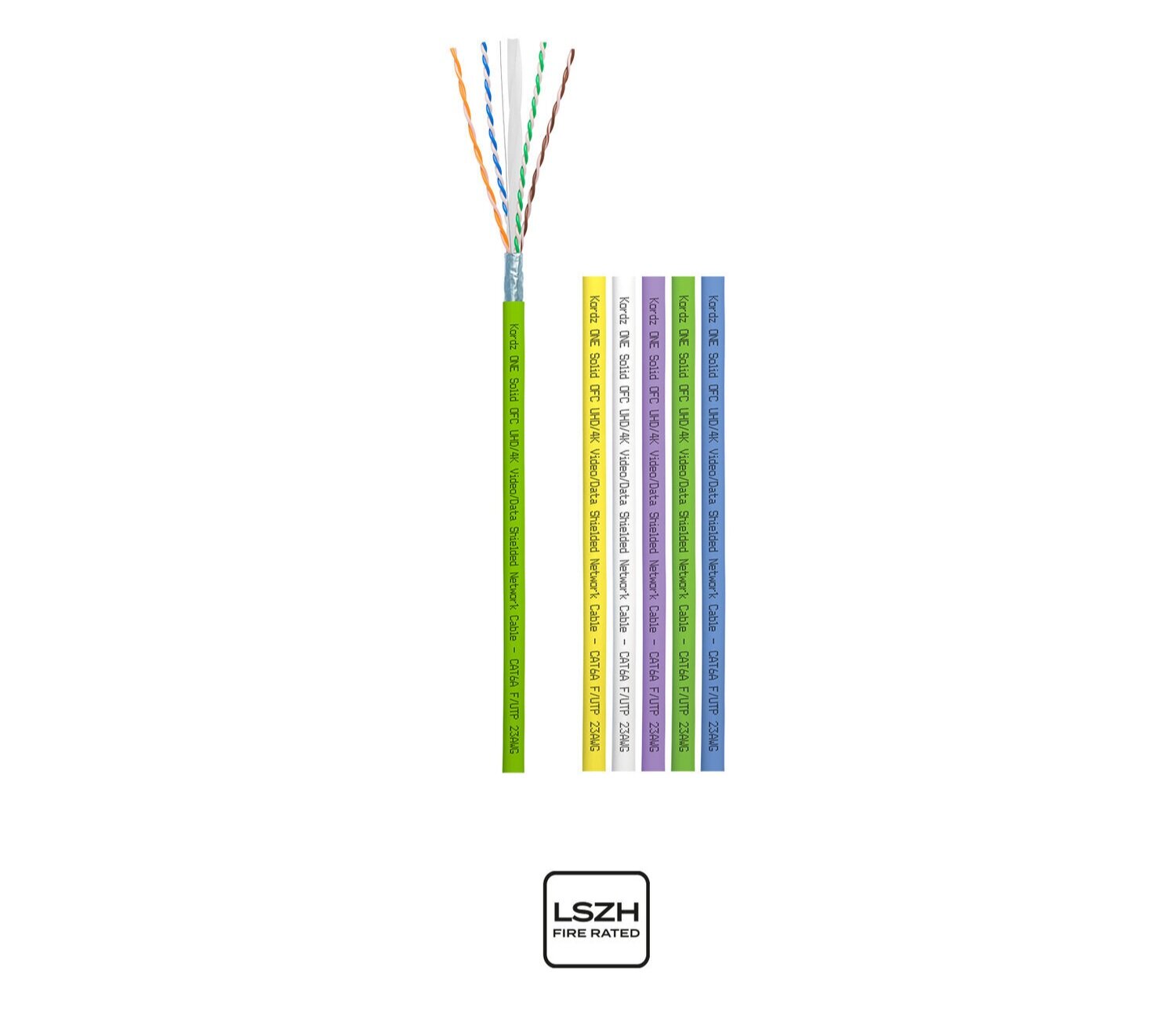

• 5 colours available: Blue, Green, White, Yellow & Purple

• Exceeds ANSI/TIA 568-C.2 and ISO/IEC 61156-5 standards

• Available in LSZH - IEC60332-3-25 and UL 444 CM fire rated versions

• CPR Declared Performance: ONE-CAT6A: Dca-s1, d2, a1 (EN 50575:2014+A1:2016)

CONSTRUCTION

• Conductor: Solid OFC annealed bare copper wire 0.561 +0/-0.015mm [23AWG]

• Insulation: Orange & Brown Pairs - Polyethylene (PE), 1.12+/-0.05 mm Blue & Green Pairs - Foam PE, 0.97 +/-0.05 mm

• Twisting: 4 twisted pairs, 2 cores to each pair

• Twisted Pair Colour Code: 1 - white-blue/blue, 2 - white-orange/orange, 3 - white-green/green, 4 - white-brown/brown

• Cable Lay-Up: 4 pairs with different pitches, non-metallic cross separator (spine)

• Shielding: Drain wire [26AWG], Mylar tape laminated with aluminium foil as a shield

• Outer Diameter: 7.4 +/-0.3 mm

MECHANICAL

• Bend Radius: without load ≥ 29.6mm /1.16”, with load ≥ 59.2mm /2.33”

• Temperature Range: During Operation: -20°C to 60ºC During Installation: 0°C to 50ºC

ELECTRICAL

• DC Resistance: ≤ 9.38Ω / 100m at 20ºC

• Resistance Unbalance: ≤ 2% at 20ºC

• Insulation Resistance (500V): ≥ 5000MΩ / km at 20ºC

• Mutual Capacitance: ≤ 5.1 nf / 100m at 1khz

• Capacitance Unbalance (pair to ground): ≤ 160 pf / 100m at 1khz

• Nominal Velocity of Propagation: nom. 67% c

• Test Voltage: 1kV DC / 1 min
