IPPC-10SLB



SLB Series | Surround LED Bar SOC Touch Displays, Integrated Android SOC Touch Displays

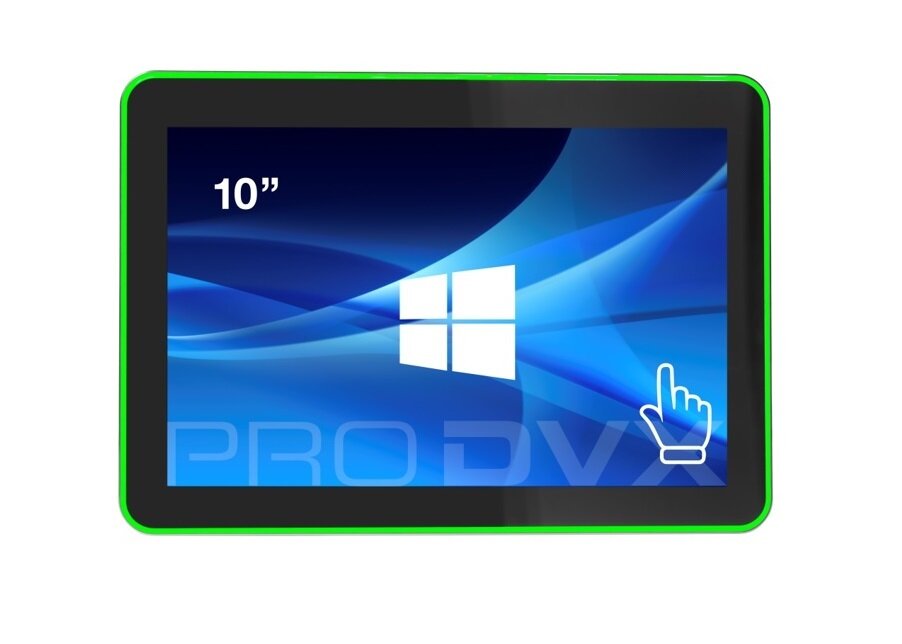

The ProDVX IPPC-10SLB is a Commercial Grade 10.1 inch Intel Panel PC with Power over Ethernet (PoE) and Surround LED Status Light Bar (Full RGB). With its Surround LED Bar it is the ideal solution for Room Booking, Room Signage and Access Control. This device can be connected through RJ45 LAN, WiFi and Bluetooth. The IPPC-10SLB Intel Panel PC standard comes with an Intel Atom X5-Z8350 Quad Core CPU and has a projected capacitive touch display and plastic housing. Optional accessories are a 1D/2D Barcode Scanner, NFC Module and Motion Sensor. This device is also available with an Android Panel PC, the APPC-10SLB.



Features:

  • Power over Ethernet (PoE)

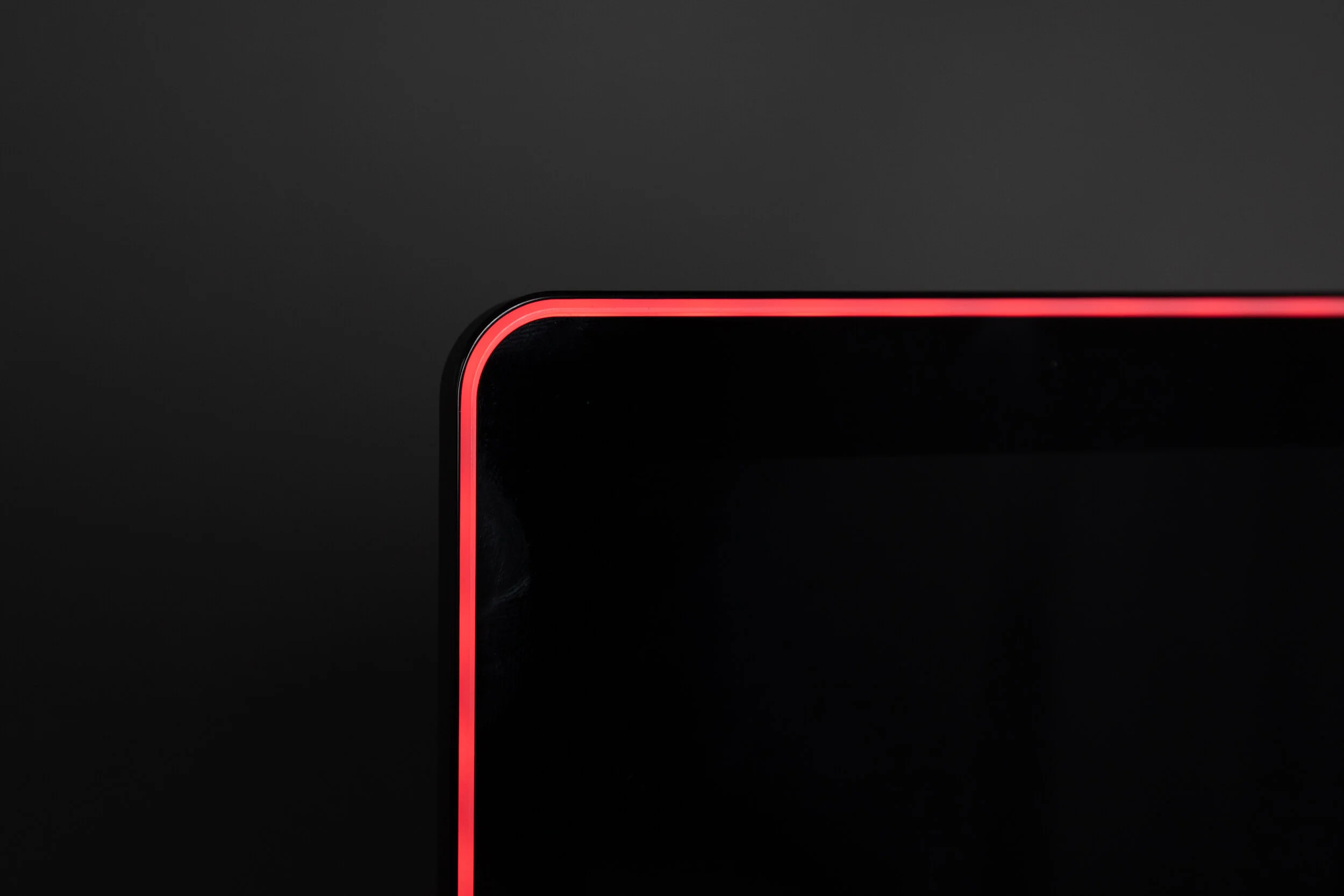

  • Surround LED Bar status lights

  • True Flat Projected Capacitive Multi-Touch

  • Rich I/O ports provide excellent peripheral connectivity

  • Slim design



Technical Specifications:

Panel

Resolution: 1280 x 800

Aspect Ratio: 16:10 wide

Backlight: LED Side light type

Brightness: 500 cd/m2

Viewing Angle: H 160 / V 160

Contrast Ratio: 800 : 1

Touch Type: 5 point touch projected capacitive

System

CPU: Intel Atom x5-Z8350 Quad Core

GPU: Intel HD Graphics

System Memory: 4 GB DDR3L 1600

Internal Storage: 64 GB eMMC

Storage Socket 2: SD Card Slot (internal)

OS: Windows 10 / Linux

LED Light Bar: N/A

I/O Ports: USB 3.0 / USB 2.0 (Micro) / RJ45 / POGO-Connector / 12V DC-IN

Network LAN RJ45: 10/100/1000 Mbps LAN

WiFi / Bluetooth: 802.11 b/g/n SiP wireless module / BT 4.0

Power over Ethernet (PoE): YES

Camera: N/A

Video/Audio

Speakers: 2 x 2 W

Audio Jack Output 3.5mm: YES

Physical

Housing: Plastic

Color: Black

Weight: 640 g

Dimensions: 255 x 181 x 25 mm

Mounting / VESA: VESA 75

Power Supply: 12 V / 2 A

Power Usage: 11 ~ 26 Watt

Other

LED Light Status Bar: YES

Clock Battery (for RTC): Lithium_ion non_rechargeable coin

Storage Temp: -10°C ~ 55°C (14°F ~ 131°F)

Working Temp: 0°C ~ 35°C (32°F ~ 95°F)

Storage/Working Humidity: 10 ~ 90% non-condensing

MTBF: 45,000 hours demonstrated

Standard Warranty: 2 years

Certifications: FCC, CE, & RoHS
