Neets Collabo 2
User-friendly video conferencing
Collabo 2.0 by Neets is a complete video conferencing hardware solution for huddle rooms that is compatible with the UC platform of your choice. You are also ensured that everybody in the room is seen and heard clearly with 4K video and audio optimized for speech playback. Getting started with video meetings couldn't be easier - users simply plug a single USB 3.0 cable into their device. The entire system turns on and off automatically upon signal detection.
2.0 full-range stereo front speaker system
The 2.0 full-range stereo front speaker system offers a massive improvement to the sound quality when compared to the rear-facing speakers you typically find in displays.Amplifier with built-in DSP function
Amplifier with built-in DSP functionality specifically enhances voice in video calls4K UHD, 120 degree webcam
Webcam with 4K UHD resolution and a wide 120-degree field of view offers superior quality video for business use2 omni-directional microphones
2 omnidirectional microphones and noise-suppressing algorithms ensure that everyone in the room is heard clearly.
Automation
CEC and wake-on-signal technology turn the display and the connected peripheral devices on/off based on signal detection from a user’s device.Screensharing with USB 3.0 connector
A universally compatible USB-A connector that transfers sound and images from your laptop to Collabo 2.0 by Neets and your display.Connections
Combine your choice of additional peripheral devices (2 USB and 1 AUX) e.g. microphone, interactive board, etc. to create your video-enabled AV system for huddle rooms. Compatible with any model or brand.Compatibility
Collabo 2.0 by Neets is compatible with any UC platform (e.g., Zoom, MS Teams, Google Meet, Slack, BlueJueans, etc.), giving meeting attendees the freedom to use the platform they are most comfortable with.
Technical Specifications:
Collabo 2.0 by Neets
Bundle part no.: 312-0060

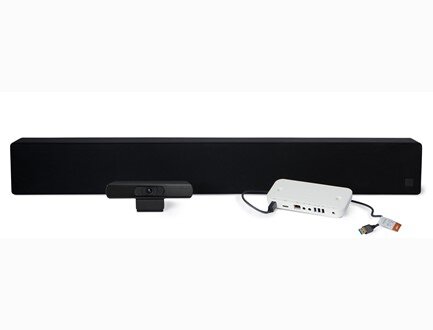

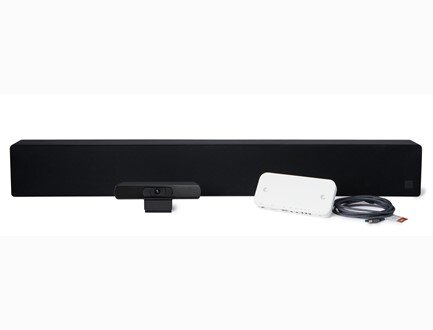

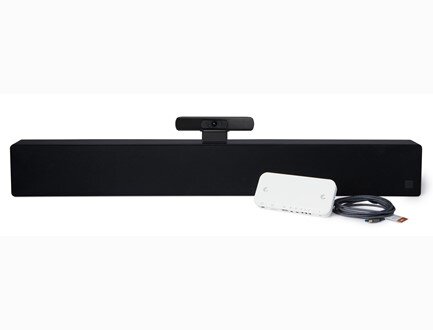

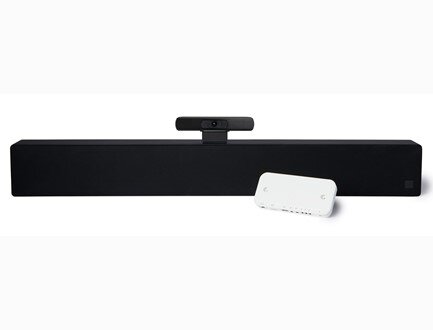

Included in the bundle
Neets Soundbar SB-1 incl. bracket and screws for wall-mounting and rubber feet for shelf-mounting.
Neets 4K Webcam
Solvo by Neets incl. 3 meters USB cable
Sound Bar– Neets Sound Bar SB – 1
Part no.: 312-0040
MDF wooden enclosure with matte black vinyl finish
Front grille textile covered MDF.
Audio output
Output power 4 x 20 Wrms
THD+N < 0.1 % @ 1 W
Woofer 2 x 4” dual magnet sandwich membrane with rubber surround
Tweeter 2 x 1” soft dome
Frequency Response 50 Hz - 20 kHz +/- 3 dB
Maximum SPL 106 dB SPL @ 1m
Auto On/Off
Power input for Sound Bar
Input voltage 24 VDC
Max power usage 50 W
Standby power usage < 0.5 W
Connector 5,5 mm DC plug
Power adaptor for Sound Bar
Line voltage 100 VAC – 240 VAC
Line current max 1.5 A
Line frequency 50 Hz – 60 Hz
Output voltage 24V
Max output current 2.5A
Webcam – Neets 4K Webcam
Part no. 325-0100
Camera
Image sensor: 1/2.5”, CMOS, Progressive scan
Lens: Field-Of-View: 120°, Focus: 2.8mm
White balance: Auto
Backlight compensation: Supported
Digital Noise Reduction: 2D & 3D reduction algorithm
Signal Noise Ratio: > 55dB
Video processing
Resolution: Ultra HD 4K, 2160p @ 30fps
Color/Compression: YUY2/MJPEG/NV12/H.264
Microphone
Built-in Microphone Array: 2x Omni-directional microphones, Noise Suppressing algorithm
Connections
USB Interface: 1 x USB-B (3.0)
Power Consumption
USB-powered: Max. 3W
Dimension/Weight
Length: 194 mm
Width: 34 mm
Height: 42 mm
Weight: 340g
Mounting/Installation
Mounting clip, 1/4” - 20 UNC thread
Material/Color
Black, matt
Solvo by Neets
Part no. 325-0001
Video
WQHD (2560x1440) - DisplayLink technology
Compliance - HDMI 1.4, HDCP 2.0, EDID
Connections
Laptop (BYOD), USB-B (3.0) - upstream port
Webcam or other 3.0 comp. devices, USB-A (3.0) - downstream port
Microphone, Whiteboard etc. - USB-A (2.0), downstream port
TV/Screen (CEC compatible) - HDMI type A
5VDC Power inlet, 5.5x2.5mm - DC input
Audio Out (Analog): Speaker, Soundbar, etc. - 3.5mm stereo jack
Audio In (Analog): Microphone - 3.5mm stereo jack
Gigabit Ethernet/Network - RJ45, ethernet port
Other interfaces
Status Indicator - 1x LED (RG Light Emitting Diode)
Power Consumption
230VAC/50Hz (15W) - External PSU: 230VAC => 5VDC/3A
Mounting/Installation
Wall mounting - 2x 5mm through-holes
Bracket/Frame Mounting - 2x support for plastic strips
Material/Color
ABS Moulded Plastic
White (RAL9016), matt
General
Width 1018 mm / 40.1 inch
Depth 75 mm / 2.95 inch
- w. wall bracket 81mm / 3.18 inch
Height without camera 130 mm / 5.1 inch
Height with camera 190 mm / 7.5 inch
Weight 5 Kg (bundle)
VESA Mounting - Compatible with VESA 400 and VESA 800 for mounting on carts and stands
Storage temperature -20 °C to 50 °C
Storage moisture Non condensing
